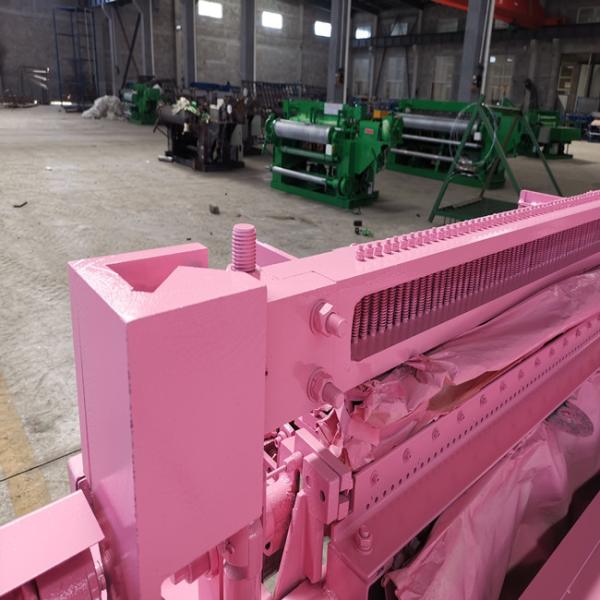

Touch Screen Highway 2.6mm Wire Mesh Welder Automatic

Name: Touch Screen Highway 26mm Wire Mesh Welder Automatic
Brand: Huayang
Price: 1 USD

Brand Name : Huayang

Model Number : R-DHW

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.

Product name : Highway Using Automatic Wire Mesh Welding Machine

Welding way : Silicon controlled synchronous control

Key Selling Points : Long Service Life, Easy to Operate

Minimum mesh size : 12.7mm

Wire Diameter : 0.45 - 2.6mm

Mesh shape : Square

Control System : PLC Touch Screen

Power : 5kw,10kw

Welding Speed : 60-100times/min

Production Capacity : 20 sets/month

Contact Now

Highway Using Automatic Wire Mesh Welding Machine

1. Product description

Highway Using Automatic Wire Mesh Welding Machine is used for making wire mesh. Mesh pulling system adopts elastic tension link and opening positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only two men can finish the operation.

2. Technical parameter

Model	Mesh width	Minimum mesh size (inch)	Wire diameter(mm)	Welding speed (rows/min)	Roll mesh length (m)	Other available mesh size (inch)
R- DHW	6 feet	1/2x1/2	0.45-0.85	90-120	130	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1/2x1/2	0.6-1.3	90-120	110	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1/2x1/2	0.8-1.6	80-90	100	1/2x1, 1x1/2, 1x1, 2x2
R- DHW	6 feet	1x1	0.45-0.85	90-120	130	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	0.6-1.3	90-110	110	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	0.8-1.6	90-110	100	1x2, 2x1, 2x2, 2x4
R- DHW	6 feet	1x1	1.4-2.6	80-90	80	1x2, 2x1, 2x2, 2x4

3. Application area

Highway Using Automatic Wire Mesh Welding Machine is used for roll mesh welding line. The automatic two meter width roll mesh welding machine are used for the production of dimensionally accurate meshwork for a wide variety of applications. Wire mesh may be used to produce shop, exhibition- and warehouse equipment as well as trays for domestic and overseas appliances.

4. Advantages

a. R&D of machines to apply for high temperature and cold regions, R&D of automatic mesh repairing unloading device.

b. Our machine can automatically dischare wire mesh.

c. We use high quality chromised copper electrodes.They can be longer service life.
